Titanium 0.5mm SFD13 Plate For Plate Heat Exchanger Phe Equipment Parts
Advantage:
Comparing to other other types of heat exchanger, plate heat exchangers have larger surface area. They are composed of a number of thin metal plates compressed together. Gasket is attached to the heat transfer plate with forms flow channel and acts seal up the fluid. Different materials have different channels and in their respective flow path alternately. They won't leak to the outside. The number of the heat transfer plate is determined according to the amount of fluid, physical properties of fluid,the pressure drop and thermal condition. Each plate is corrugated to increase the maximum heat transfer area.
SFD13 Plate Heat Exchanger Gaskets/Plates Specifications in Evaporative Water Generator Sysytem
| Plate Material | SS304/SS316L/ Titanium / SMO254/ Nickel / Hastelly C276 |
| Gasket Material | EPDM/NBR/ HNBR/HTNBR/HEPDM/FKM/VITON A/VITON G |
| Plate Thickness | 0.5mm-0.6mm |
| Plate Shape Size | 744*270mm |
| Plate Center Size | 620*150mm |
| Corrugation Normal Pitch | 11.1mm |
| Corrugation Depth | 4/3.5mm |
| Plate Equivalent Diameter | 7mm |
| Angle Hole Diameter | Φ74 |
| Plate Transfer Area | 0.13㎡ |
| Model Type | SFD13 Old Type / SFD13 New Type |
| Plate Type | Plate 1 / Plate 2 / Plate 3 / Plate 4 |
| Gasket Type | Glue Type |
| Corrugated Angle | 0° / 180° |
| Working Pressure | <= 25 bar |

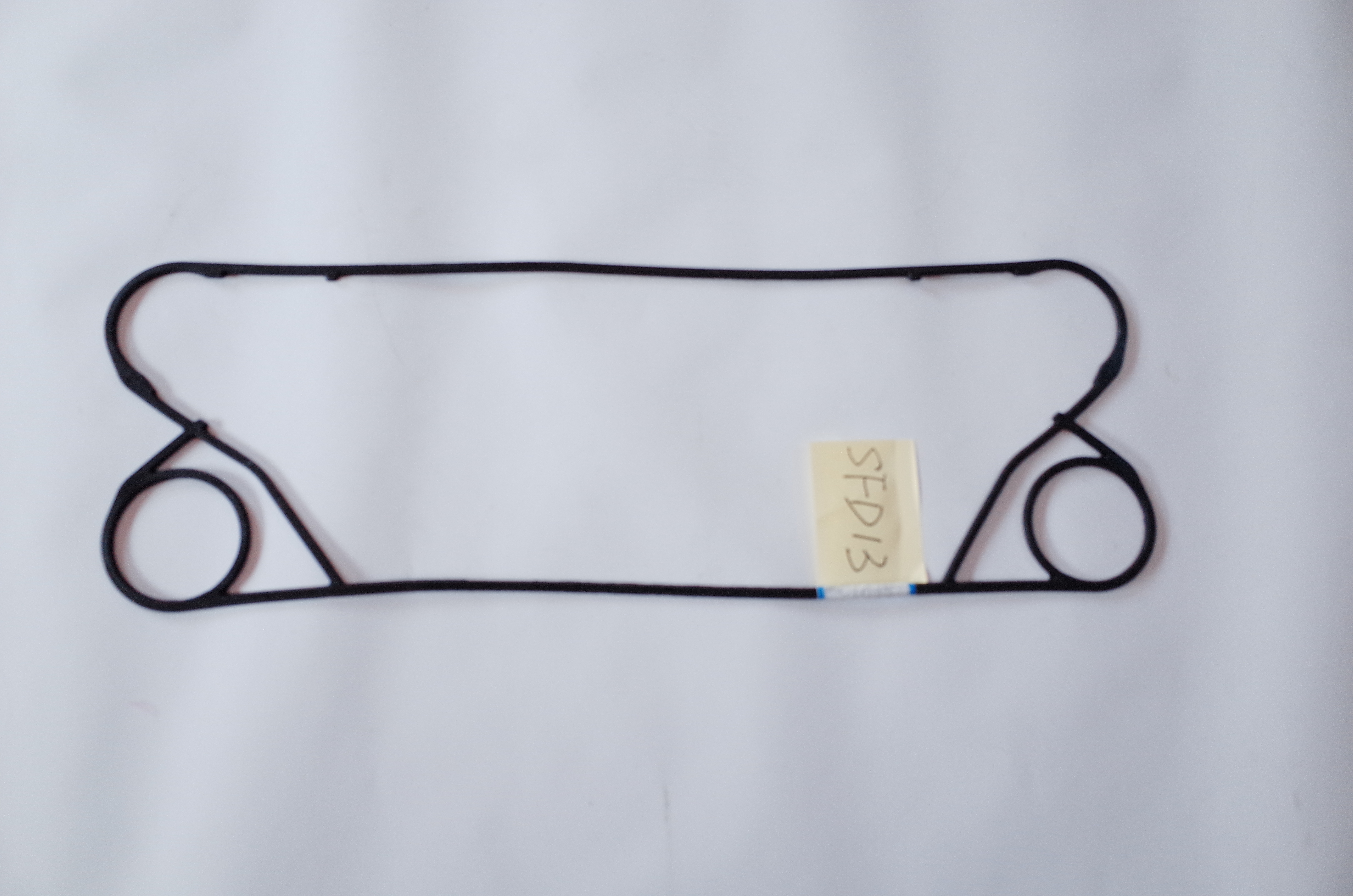

SFD13 Product Picture

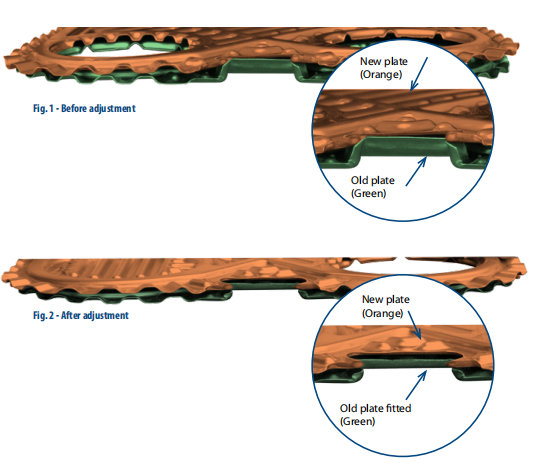

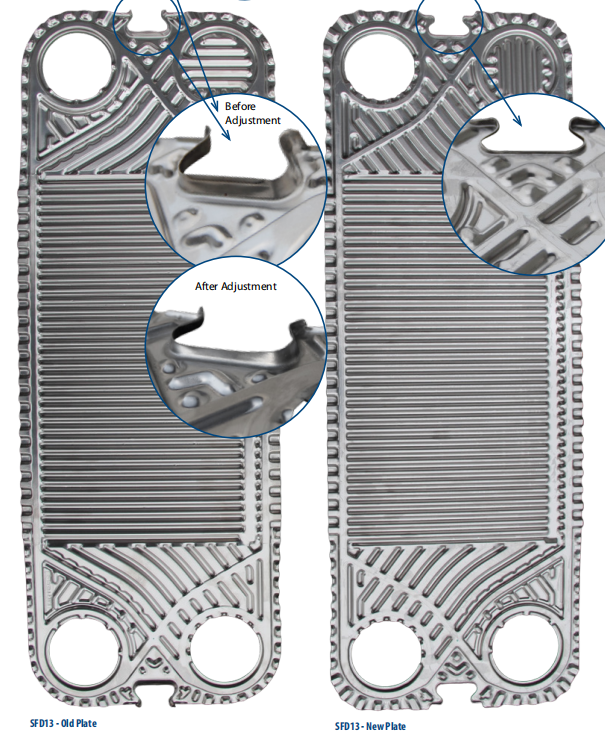

SFD13 Old Type and New Type Adjustment
About MC
Jiangyin M&C Heat Parts Co.,Ltd is located in Wuxi, which major in the heat exchanger industry, provide many brands of plate heat exchanger plates and gaskets to many customers from the world.
From now on, MC owns more than 600pcs gasket models and 200pcs plate models. Daily output more than 5000pcs per day. Products be sold to Europe, South America, North America, Africa, Middle East and Asia.
MC has gasketed plate heat exchangers (GPHE), brazed plate heat exchanger (BPHE), plate heat exchanger gaskets (PHE Gaskets) and plate heat exchanger plates (PHE Plates).
These products are widely used in HVAC, Air Conditioning, Automotive, Beverage, Food, Chemicals, Oil, Power, Paper, Transportationand other fields. MC has a professional technical team and good quality sales team. Reliable product quality, technology leader and passionate service. We can according customers requirements to provide design,consult, maintance and other service.

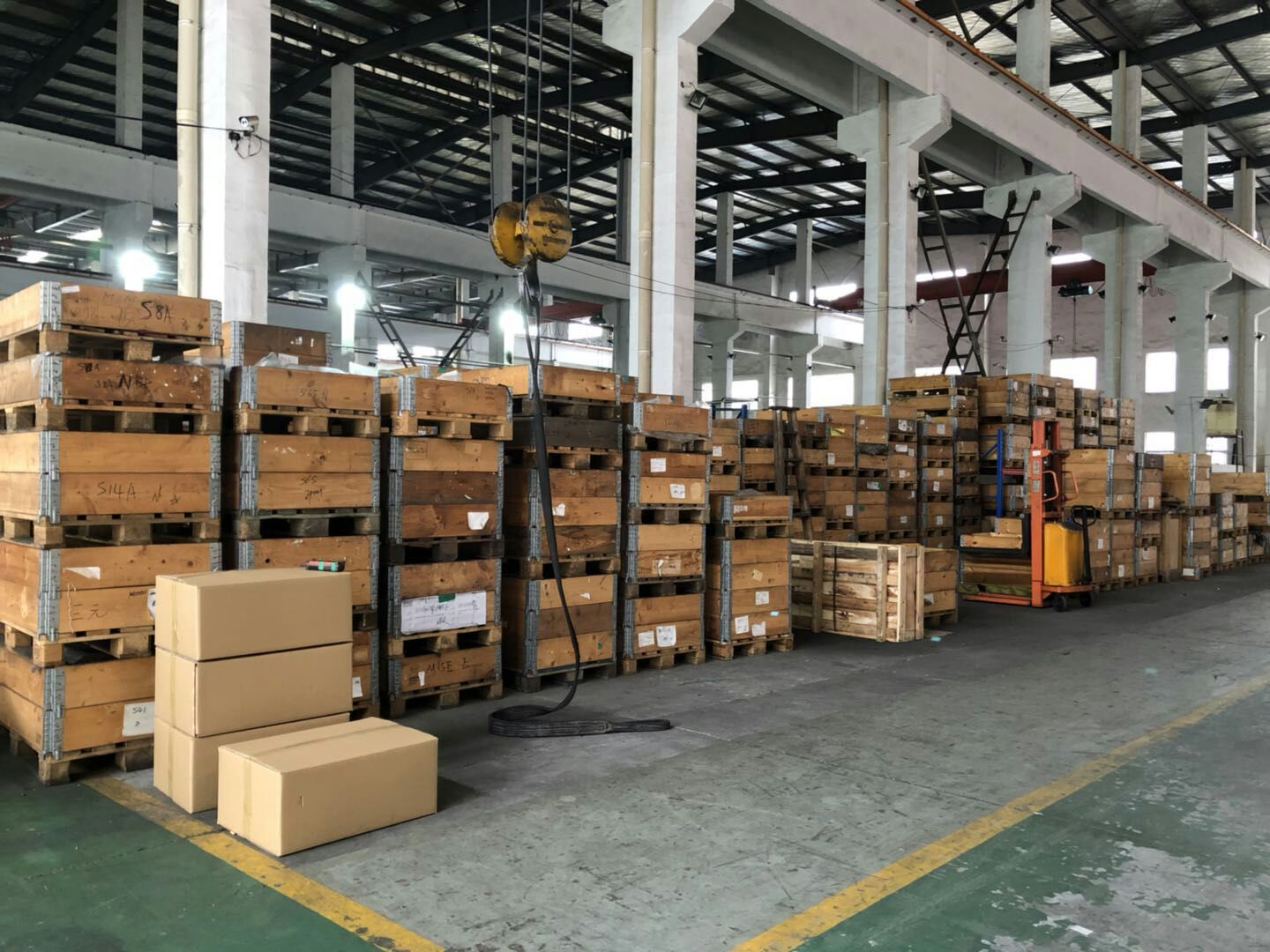

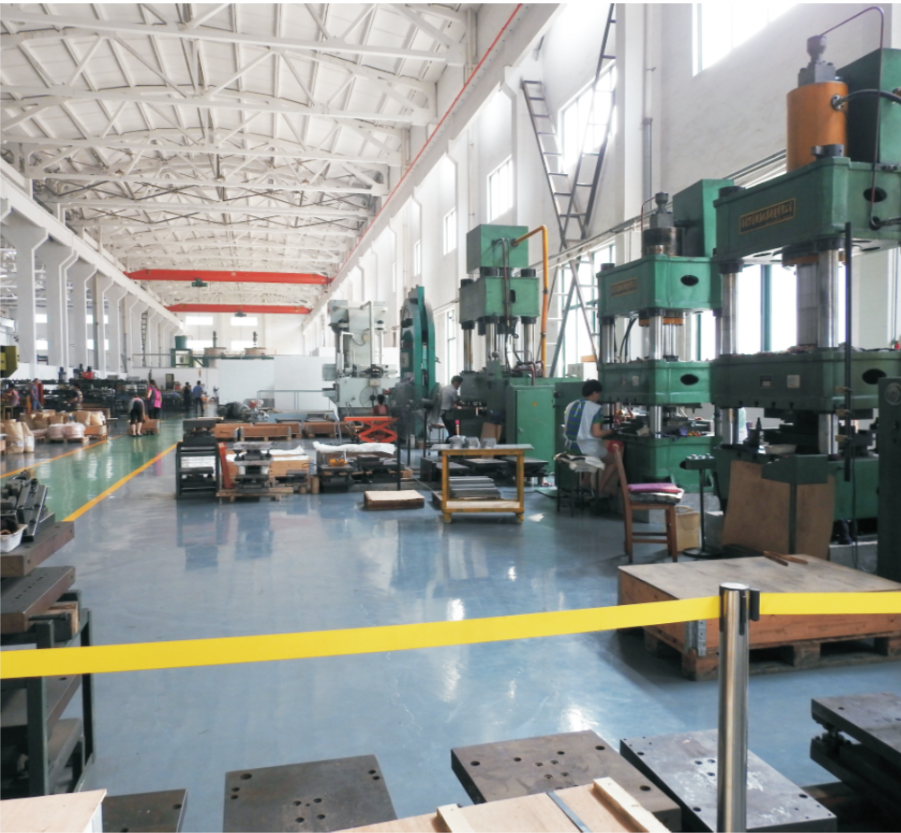

Workshop Picture
