SR2 Gaskets Heat Exchanger Plate Chemical Resistant
The plate heat exchanger consists of a pack of corrugated metal plates with portholes for the passage of the two fluids between which heat transfer will take place. The plate pack is assembled between a fix frame plate and a movable pressure plate and compressed by tightening bolts. The plates are fitted with a gasket which seals the inter plate channel and directs the fluids into alternate channels. The number of plates is determined by the flow rate, physical properties of the fluids, pressure drop and temperature program. The plate corrugations promote fluid turbulence and support the plates against differential pressure. The frame plate and the pressure plate are suspended from an upper carrying bar and located by a lower guiding bar, both of which are fixed to a support column. Connections are located in the frame plate or, if either or both fluids make more than a single pass within the unit, in the frame and pressure plates.
MC plate heat exchangers can be used in a variety of different configurations. One of confuguration is closed circuit cooling, where the dirty cooling medium such as sea, river, lake to tower water is isolated at the plate heat exchanger and clean treated water is continually recirculated through the process plant. This configuration, as shown in below picture, protects process equipment from the dirty cooling fluid.
SR2 Plate heat exchanger Plates Gaskets Specification in Heat Exchanger Gaskets
| Plate Material | SS304 SS316L SMO254 Titanium Alloy C276 Nickel Hastelly |
| Gasket Material | NBR:(applicable temp -15~+120℃) |
| HNBR:(applicable temp -15~+140℃) |
| EPDM:(applicable temp -25~+150℃) |
| HEPDM:(applicable temp -25~+170℃) |
| Viton/FPM:(applicable temp -5~+180℃) |
| NEOPREKE:(applicable temp -5~+130℃) |
| VNQ:(applicable temp -65~+250℃) |
| Thickness of plate | 0.5mm/0.6mm/0.7mm/0.8mm/0.9mm/1.0mm |
| Plate Shape Size | 838*298mm |
| Plate Center Size | 700*180mm |
| Corrugation Depth | 2.6mm |
| Angle Hole Diameter | Φ63.5 |
| Corrugated Angle | 46° /90 °/180 °/0 ° |
| Working Pressure | <= 25 bar |
| Plate Theta | Low Theta and High Theta |
| Plate Hole | Channel Plate with 4 Holes, End Plate without holes |
SR2 Product Picture
About MC
MC provides advanced heat transfer solutions for cooling, heating, condensing and evaporation of pricess fluids-designed to solve heat transfer process challenges in a vast array of industries. They are designed to meet demanding process conditions and to optimize the utilisation of energy. MC heat transfer solutions have proven reliable and highly efficient helping customers worldwide to run their processes safely and economically. Deducated and soecialized MC staff is committed to design and provide efficient and durable heat transfer solutions to help customers optimized energy utilization and minimize downtime for imporved profitablility
Gasketed plate and frame heat exchangers provide efficient heat transfer in compact equipment with a small footprint. The units have a flexible design and easy to service and maintain. The product range is extremely wide and used in duties for many industires.
MC offers an extensive portfolio of plate heat exchangers covering many industrial applications. Regularly MC heat exchangers replace older technology products due to the simplicity of installation and their high performance thermal characteristics. Whether recovering waster heat or isolating the cooling system from the cooling source, MC has the application knowledge and product to improve efficiency and performance,
Our vision for the future is rooted in a long standing tradtion of excellence and commitment to progress. We strive to offer the customer the highest quality products and services today, tomorrow and beyond.
Gasket Information
Plate heat exchanger gasket is one of the important parts of plate heat exchanger, which can produce plastic deformation and have certain strength.
M&C's gaskets are customized to fit the customer's working conditions and are manufactured by a professional factory in a specified size.
The contact width between the high pressure gasket and the sealing surface is very narrow (line contact).
Sealing principle:

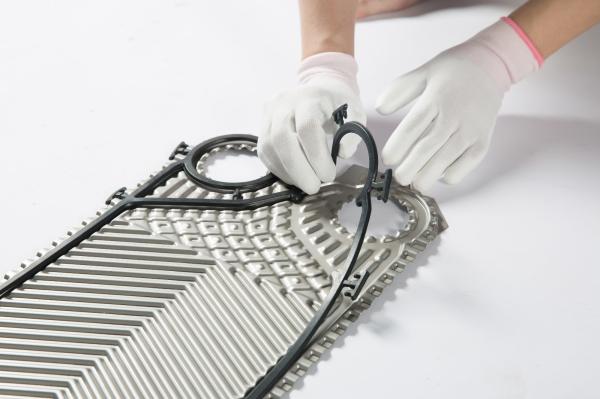

The corrugated plate is pasted with sealing gasket, which is designed to double seal structure and has signal hole.When the medium leaks from the first seal, it can leak out from the signal hole, and the problem can be detected and solved as soon as possible, without causing the mixing of the two media.Sealing gasket according to different media and operating temperature to choose different types of gaskets.
MC Package Picture
